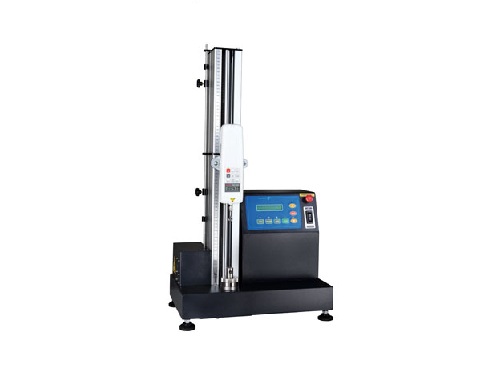

QC-528 Motorized test stand is designed to be available to mount with different brand/type of force gauge, test stand is provided with displacement display, test speed with digital setting, it is the best choice for small specimen test. Light weight stand, small size without taking space.
Industry: Plastic, Paper, Textile, Tape, Packaging
| Model | QC-528K |
|---|---|
| Max. capacity | 500 N |
| Test Stroke | 400 mm(w/o grip) |
| Stroke resolution | 0.05 mm |
| Speed range | 6 ~ 600 mm/min(Digital setting) |
| Hardware safety protection |
Up and down limit switch, emergency stop button protection |
| Machine power | Servo motor |
| Power | Single phase 110~240VAC，5A |
| Dimension | 45 × 27 × 88 cm |
| Weight | 28 kg |
(1) Grip& Load Cell
Each test will require different test grips and accessories for the plastics, metal, biomedical, composite, elastomer, component, automotive, aerospace, textile and other applications industries.
★Tensile grip
★Compression grip
★Bending grip
★Peeling/Tearing grip
★Film friction grip
★Load cell
(2) Displayer
1. Adopted with 7- inch of TFT Color touch screen
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7.Various machine shutdown conditions setting (force, displacement, time, elongation).
8.Can be restored to the original factory state.
9.Unit selection can be Metric unit, Imperial units
10.Over-travel, overload protection and overtime machine stop
11.Can store up to 50 data, USB storage data function.
12.Support multiple sets of signal sources.
(3) Extensometer
|
|
 |
|||
| QC-557 Short extensometer Suitable for elongation below 50% |
QC-551 Long travel extensometer
|
|||
