Confirm to FINAT 4、ASTM D1000、ASTM D3330 Standard

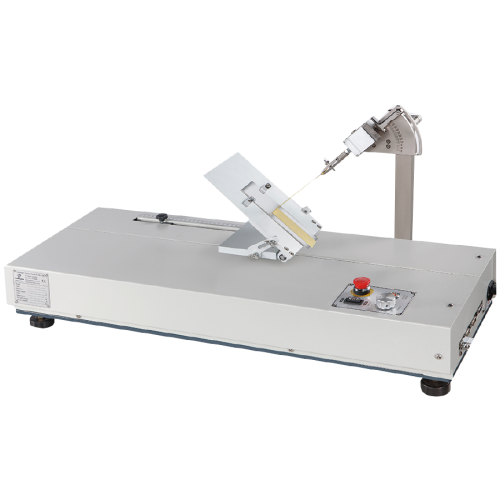

QC-527 test range can do low and high speed peel test and also for 90°、180° multi-angle peel test. Low speed peeling force generally uses 300mm/min to proceed with test, testlow-stick adhesive label tear force. High speed peeling force generally uses 100-30000mm/min to proceed with test, simulate peeling force during label forming and labeling speed for end users.
Industry: Tape
| Model | QC-527M2F |
|---|---|
| Max. capacity | 500 N |
| Force resolution | 32 bits |
| Force resolution | 1/100,000 |
| Stroke | 600 mm（w/o grip） |
| Stroke resolution | 0.0001 mm |
| Speed range | 100 ~ 30,000 mm/min adjustable |
| Speed accuracy | ± 0.75% |
| Pc connection | RJ45(TCP/IP) |
| Hardware safety protection | Up/down limit, emergency stop button |
| Motor | |
| Servomotor | |
| Feature | ※ High-speed machine operation can be specified as fast as 50000mm/min test speed. |
| ※ 1200Hz high-speed reading system allows accurate data analysis. | |
| ※ Horizontal planning reduces the deviation of the test piece due to its own weight. | |
| Power | Single phase 200 ~ 240VAC，15A |
| Dimension | 125 × 44 × 71 cm |
| Weight | 100 kg |
(1) Grip& Load Cell
Each test will require different test grips and accessories for the plastics, metal, biomedical, composite, elastomer, component, automotive, aerospace, textile and other applications industries.
★Tensile grip
★Compression grip
★Bending grip
★Peeling/Tearing grip
★Film friction grip
★Load cell
(2) Displayer
1. Adopted with 7- inch of TFT Color touch screen
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7.Various machine shutdown conditions setting (force, displacement, time, elongation).
8.Can be restored to the original factory state.
9.Unit selection can be Metric unit, Imperial units
10.Over-travel, overload protection and overtime machine stop
11.Can store up to 50 data, USB storage data function.
12.Support multiple sets of signal sources.
(3) Extensometer
|
|
 |
|||
| QC-557 Short extensometer Suitable for elongation below 50% |
QC-551 Long travel extensometer
|
|||
- QC-548M1F Universal testing machine
- QC-548M2F Universal testing machine
- QC-507M1F Universal material tester Horizontal Type
- QC-803A Manual roller
- QC-801 Tape holding power booth
- QC-805 Tape initial adhesion tester
| (1)Software interface |
(2)Report
*Cometech reserves ultimate modification right of product specification.
