Confirm to ISO 7500-1, JJG475-88, ASTM E4, DIN5122, JIS B7721/B7733, EN 1002-2, BS1610, GB T228 Standard

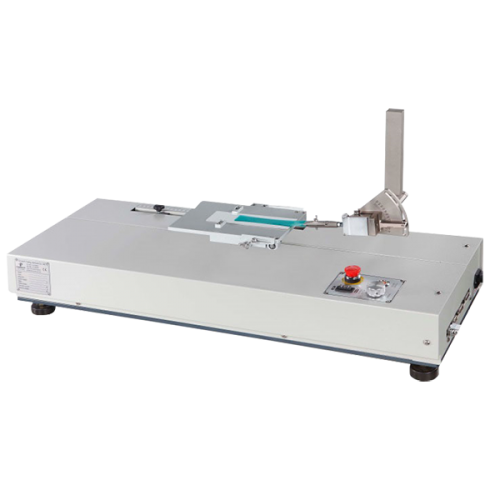

Universal Material Tester Horizontal Type QC-507M1F is especially developed for 90°/180° peeling test and friction test.
Different angles can be adjusted, and tester can be connected to PC for better analysis and higher speed accuracy. Optional display accessory is available for stand-alone mode to access data rapidly.
The universal testing machine is light and space-saving and has a good flexibility for tape/electrons, etc. when mounted with different grips.
(1) Grip& Load Cell
Each test will require different test grips and accessories for the plastics, metal, biomedical, composite, elastomer, component, automotive, aerospace, textile and other applications industries.
★Tensile grip
★Compression grip
★Bending grip
★Peeling/Tearing grip
★Film friction grip
★Load cell
(2) Displayer
1. Adopted with 7- inch of TFT Color touch screen
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7.Various machine shutdown conditions setting (force, displacement, time, elongation).
8.Can be restored to the original factory state.
9.Unit selection can be Metric unit, Imperial units
10.Over-travel, overload protection and overtime machine stop
11.Can store up to 50 data, USB storage data function.
12.Support multiple sets of signal sources.
(3) Extensometer
|
|
 |
|||
| QC-557 Short extensometer Suitable for elongation below 50% |
QC-551 Long travel extensometer
|
|||
| (1)Software interface |
(2)Report
*Cometech reserves ultimate modification right of product specification.
