Confirm to ISO 7500-1, JJG475-88, ASTM E4, DIN5122 , JIS B7721/B7733 , EN 10002-1,EN 1002-2,BS1610,GB228 Standard

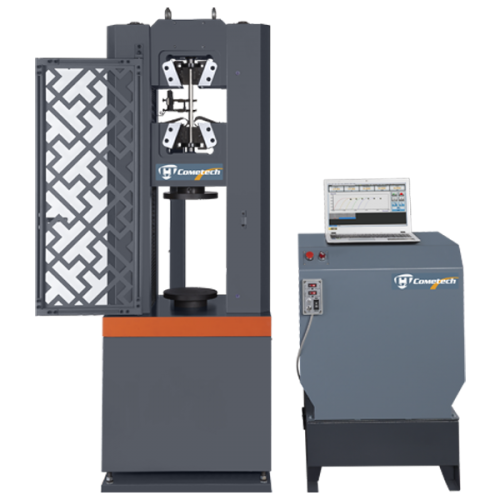

Computerized Hydraulic Universal Testing Machine is equipped with standard tensile V-shaped and flat tensile grips and compression set. The individual controller cabinet of hydraulic material testing machine is convenient for maintenance and can reduce electrical disturbance. The M2F system of this Metal tensile testing machine is capable of performing various tests conforming to different standards such as ISO7500-1, JJG475-88, ASTM E4, ASTM A370, DIN5122, JIS B7721, JIS B7733, EN10002-1, EN1002-2, BS1610, GB/T228, ISO 6892-1, ASTM E8. It is also commonly used to perform tension/ tensile testing of metallic materials, and mechanical testing of steel products to get value of yield strength, stress, tensile strength, shear, bending, elongation.
(1) Grip& Load Cell
Each test will require different test grips and accessories for the plastics, metal, biomedical, composite, elastomer, component, automotive, aerospace, textile and other applications industries.
★Tensile grip
★Compression grip
★Bending grip
★Peeling/Tearing grip
★Film friction grip
★Load cell
(2) Displayer
1. Adopted with 7- inch of TFT Color touch screen
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7.Various machine shutdown conditions setting (force, displacement, time, elongation).
8.Can be restored to the original factory state.
9.Unit selection can be Metric unit, Imperial units
10.Over-travel, overload protection and overtime machine stop
11.Can store up to 50 data, USB storage data function.
12.Support multiple sets of signal sources.
(3) Extensometer
|
|
 |
|||
| QC-557 Short extensometer Suitable for elongation below 50% |
QC-551 Long travel extensometer
|
|||
| (1)Software interface |
(2)Report
*Cometech reserves ultimate modification right of product specification.
