Confirm to ISO 7500-1, JJG475-88 , ASTM E4 , DIN5122 , JIS B7721/B7733 , EN 10002-1,EN 1002-2,BS1610,GB228 Standard

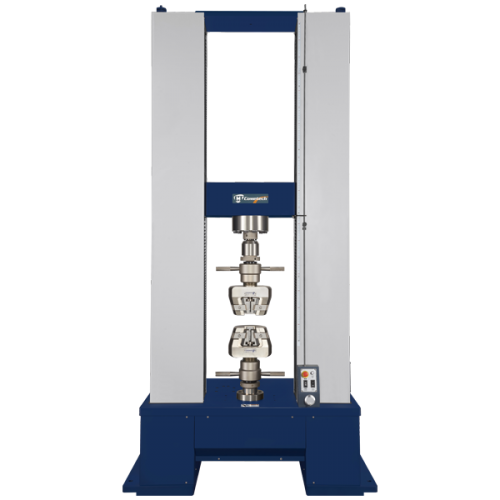

This serial model is capable for the capacity that above 500KN test.It is design for tensile test, compression test, bending testand all kind of test. The UTM with high torque servo motor and high rigidity, high strength provide the motion and power. Effectively decrease the maintenance fee, also extend the life time of machine.It is suitable for Metal and Architecture industry. Also provide the quiet testing environment and high accuracy test result.
Go with Cometech specialist M2 testing software which is used Windows 7/8 of Person computer. It can do tensile test, compression test, bending test and all kind of test. The software with multi-languages is very easy to operation. It also has all kind of metric units, real-time graphs and also provides complete analysis test data which finish test can do variety of material analysis.
Standard equipped with sophisticated hand wheel which can be in precision position. The external signals can connect an external test signal function to expand to machine operating modes.
Industry：Plastic、 Textile、Metal and Architecture.
| Model | QC-50AM2F | QC-500M2F |
|---|---|---|
| Max. Capacity | 600kN | 500kN |
| Units |
Force: gf, kgf, lbf, N, kN, ozf, tonf(SI), ton(long), tonf(short) |
|
| Force Resolution | 1/100,000 (31 bits) | |
| Load cell accuracy | ±1% under the range 2-100% of the load cell capacity (There are optional load cells with higher accuracy) |
|
| Test stroke(w/o grip) | 1500mm | |
| Stroke resolution | 0.0001mm | |
| Space between columns | 550mm | |
| Speed accuracy | ±1% | |
| Speed range | High speed mode | |
| 0.02 ~ 330 mm/min | ||
| Low speed mode | ||
| 0.0002~2 mm/min | ||
| PC-Port | RJ45(TCP/IP) | |
| Data sampling rate | 1200Hz (Max.) | |
| Hardware safety protection | upper limit, lower limit, emergency stop button | |
| Motor type | Servo Motor | |
| Feature |
※Automatic reading of load cell feature information |
|
| Power Supply | 3 phase 200V-240 V, 5A | |
| Dimension of Machine | 155 x 85 x 295 cm | |
| Weight of Machine | Around 2350kg | |
(1) Grip& Load Cell
Each test will require different test grips and accessories for the plastics, metal, biomedical, composite, elastomer, component, automotive, aerospace, textile and other applications industries.
★Tensile grip
★Compression grip
★Bending grip
★Peeling/Tearing grip
★Film friction grip
★Load cell
(2) Displayer
1. Adopted with 7- inch of TFT Color touch screen
2. Chinese, English, Japanese, Three different languages can be selected.
3. Data Display: Force, Stress, Torque, Displacement, Time
4. Test setting, can set test speed, test direction, automatic position return, breaking point machine stop.
5. Data analysis, can read the maximum force, internal force, breaking point force and so on.
6. Can be stand-alone calibration.
7.Various machine shutdown conditions setting (force, displacement, time, elongation).
8.Can be restored to the original factory state.
9.Unit selection can be Metric unit, Imperial units
10.Over-travel, overload protection and overtime machine stop
11.Can store up to 50 data, USB storage data function.
12.Support multiple sets of signal sources.
(3) Extensometer
|
|
 |
|||
| QC-557 Short extensometer Suitable for elongation below 50% |
QC-551 Long travel extensometer
|
|||
1. Data sample rate faster can be set up to 400Hz.
2. Operation method: By keyboard and mouse control test, can also through up and down button to adjust the fixture position.
3. Compatible with Window 7 /8 /10 system.
4. Software has multi-languages with Chinese, English, Japanese, Korean, Spanish and Polish display
5. Operating mode: TCP/IP interface, two-way transmission, the computer directly control the machine action.
6. Can import multiple test data display simultaneously.
7. Unit selection can be Metric unit and Imperial units.
8. Form flexibility, self-planning information analysis.
9. Data name can be self-set and can self-defined formula.
10. Test Screen can be selected data display, graphic display or simultaneous display.
11. Data processing: store, call, list, statistical comparison, etc.
12. Graph X-Y axis physical quantity adjustment, graph-specific mark, interval mark, slope and son on.
13. Test tensile, compression, bending, peeling, spring and other tests.
14. Software protection: Overload, over -displacement, over-time protection.
15. Variety of test actions,，Ex. hold tensile (compression)、10 grades of the actions.
16. Modularization of specimen setting, providing easy to set specimen.
17. Modularization of test conditions to reduce artificial setting negligence and error.
18. Key data capture, can set the upper and lower limits of test data specifications.
19. Support multiple sets of I / O signals, increase testing mechanism.
| (1)Software interface |
(2)Report
*Cometech reserves ultimate modification right of product specification.
