ASKER P2 Auto Loading Durometer

by | Apr 16, 2026 | ASKER Hardness Durometer

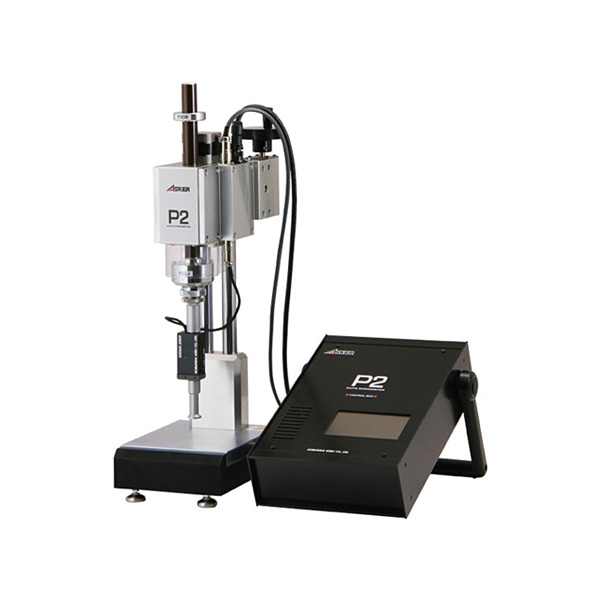

P2 Auto Loading Durometer

Model P2-A Shore A scale, Normal rubber (ASTM D-2240)
Model P2-D Shore D scale, Hard rubber and plastics (ASTM D-2240)
Model P2-D0 Shore D0 scale, Dense textile windings (ASTM D-2240)
Model P2-C Asker C scale, Soft rubber (JISK-7312)
Model P2-E Asker E scale, Soft rubber and sponge (JIS K-6253)

Asker P2 Auto Loading Durometers maximize the repeatability of hardness tests. The Asker P2 features digital speed control to ensure constant speed during hardness tests. The proprietary flexible coupling ensures perfect contact with test samples. All operation and program functions are controlled using the touch screen LCD panel or remotely using an Ethernet connection. Both automated or manual tests can be performed. Dual timers enable recording of the “creep phenomenon” or tendency of the reading to move back as time elapses from the moment the sensor makes full contact with the sample.

Optional SW-1 Data Acquisition Software

Use SW-1 software to capture and analyze peak and timed data from the RS-232 port. A running log of all the data is displayed along with a chart. Calculates max/min, average, and standard deviation



Specification:

Compliant standard

  • JIS K 6253-3 / JIS K 7215  /  ASTM D 2240 / ISO 48-4 / ISO 868 /
  • DIN 53505

Push needle shape mmHeight 2.50 35 ° Conical trapezoidal end face φ0.79Pressurized surface dimension mm

  • Outer diameter 18.0
  • Inner diameter 3.0

Spring load mN(g)

0 points  550 (56)
100 points  8050 (821)

Descent speed controlStepping motorMinimum reading0.1 pointsMulti data

  • Peak hold
  • Timer hold value (up to 2 locations can be set between 0 and 60 seconds)
  • Real-time value

Height adjustment range mm0-80External outputEthernet interfacepower supplyAC100-240VweightApproximately 24 kgUseGeneral rubber / soft plastic

Standard Features

  • Dual Timer Peaks, Peak and Real time Modes
  • Unique flexible coupling automatically aligns to surface of sample to provide super stable reliable reading
  • Digital speed control
  • Precision stepping motor
  • RS-232 Output
  • Optional data acquisition software available
